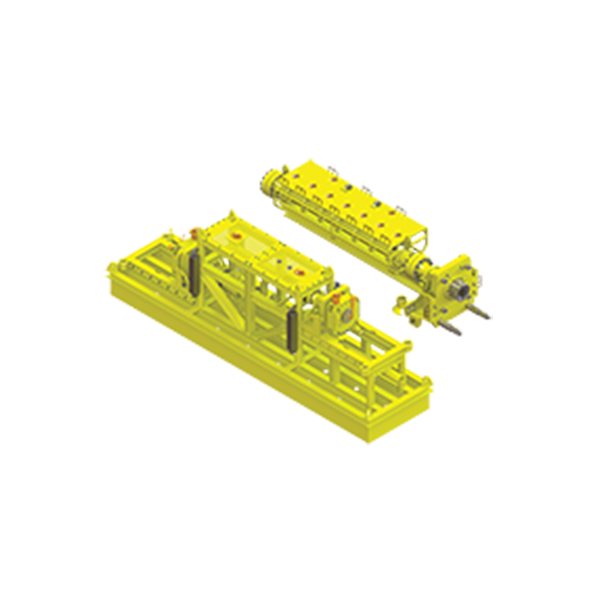

PLET And Pig Launcher

FEATURES

• Header piping with one elbow branch
• Manual isolation ball valves with ROV operated bucket
• Subsea diverless mechanical clamp connection system
• Tee branch joint with sensors mounting interfaces
• PLET structure consists of :

  – Lifting and installation padeyes with deployment slings set
  – Protection structure for PLET Pipe work, Ball Valve, Connection System
  – Catholic Protection for the PLET assembly
  – Foundation mudmat with skirt
  – Mounting interfaces for pipes, Ball Valve and ROV bucket interface
  – Alignment features for mechanical clamp connections
