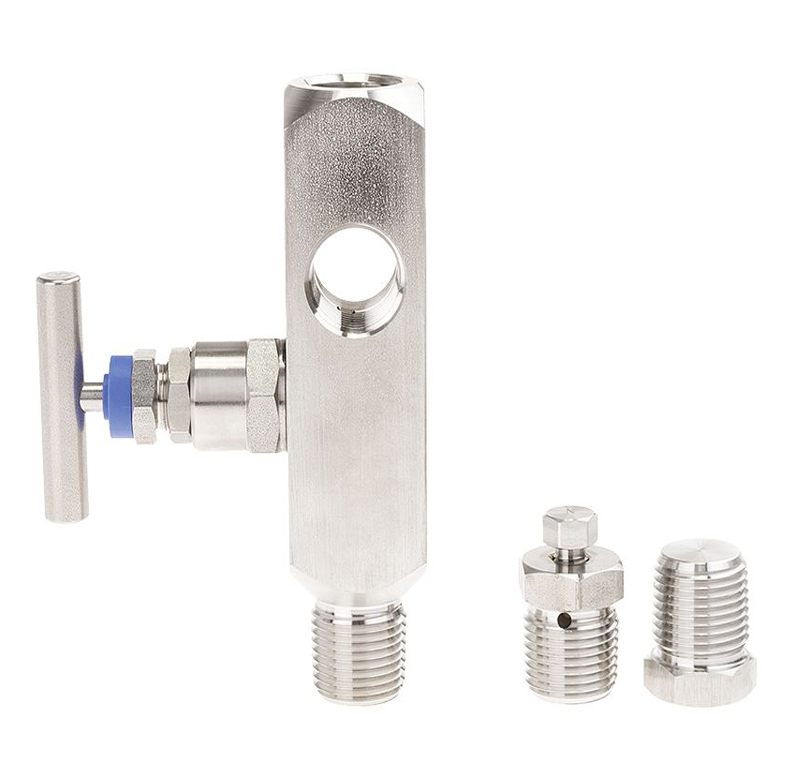

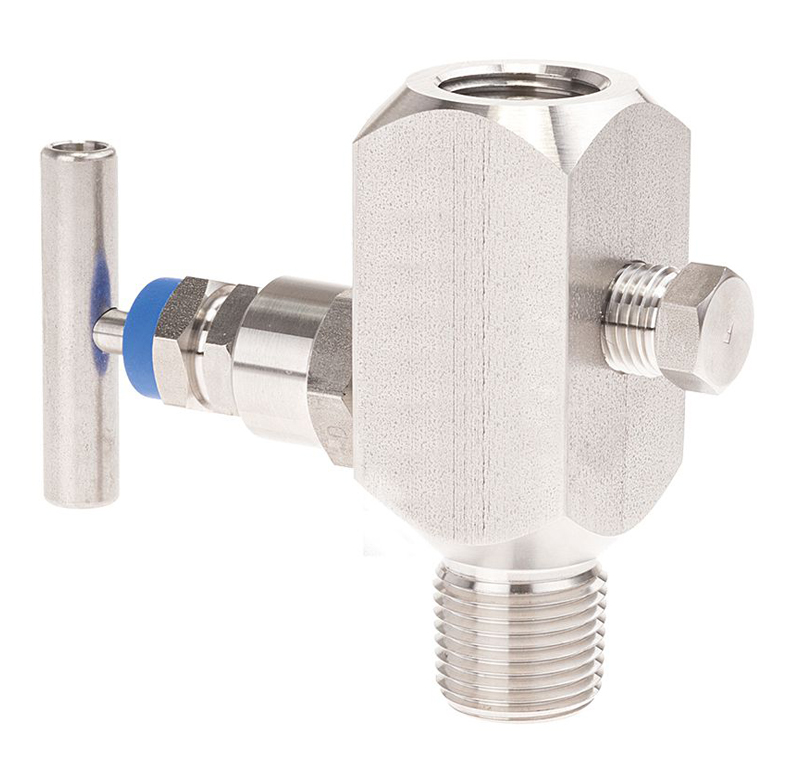

WIKA lV1x-Needle Valve

Desriptions:

Needle valves and multiport valves separate the process from measuring instruments such as pressure gauges, switches or transmitters. By closing this valve the instrument can be safely dismounted for services like recalibration or replacement. With the vent connection option, the instrument can be vented to the atmosphere by means of the needle valve. Already in the standard version, the multiport valve is equipped with two additional connections. These can be used either as vent connections or for the connection of additional instruments.Through the non-rotating spindle tip, the wear of the sealing elements is reduced. This results, particularly with frequent opening and closing, in a noticeable increase in the service life.Through the blow-out proof design of the valve, working safety is improved, especially in applications with high pressure loading.

Categories: Valve, Wika

Description

Sami Instruments, which is part of WIKA Group, is an Italian manufacturer and leader in instrumentation, piping and high pressure valves and accessories, with over 50 years of experience and know how. Their production range includes instrumentation ball valves and needle valves and manifolds, for pressures from 6.000 to 10.000 psi and with standard connections from ¼” to 1” NPT or BSPP.
