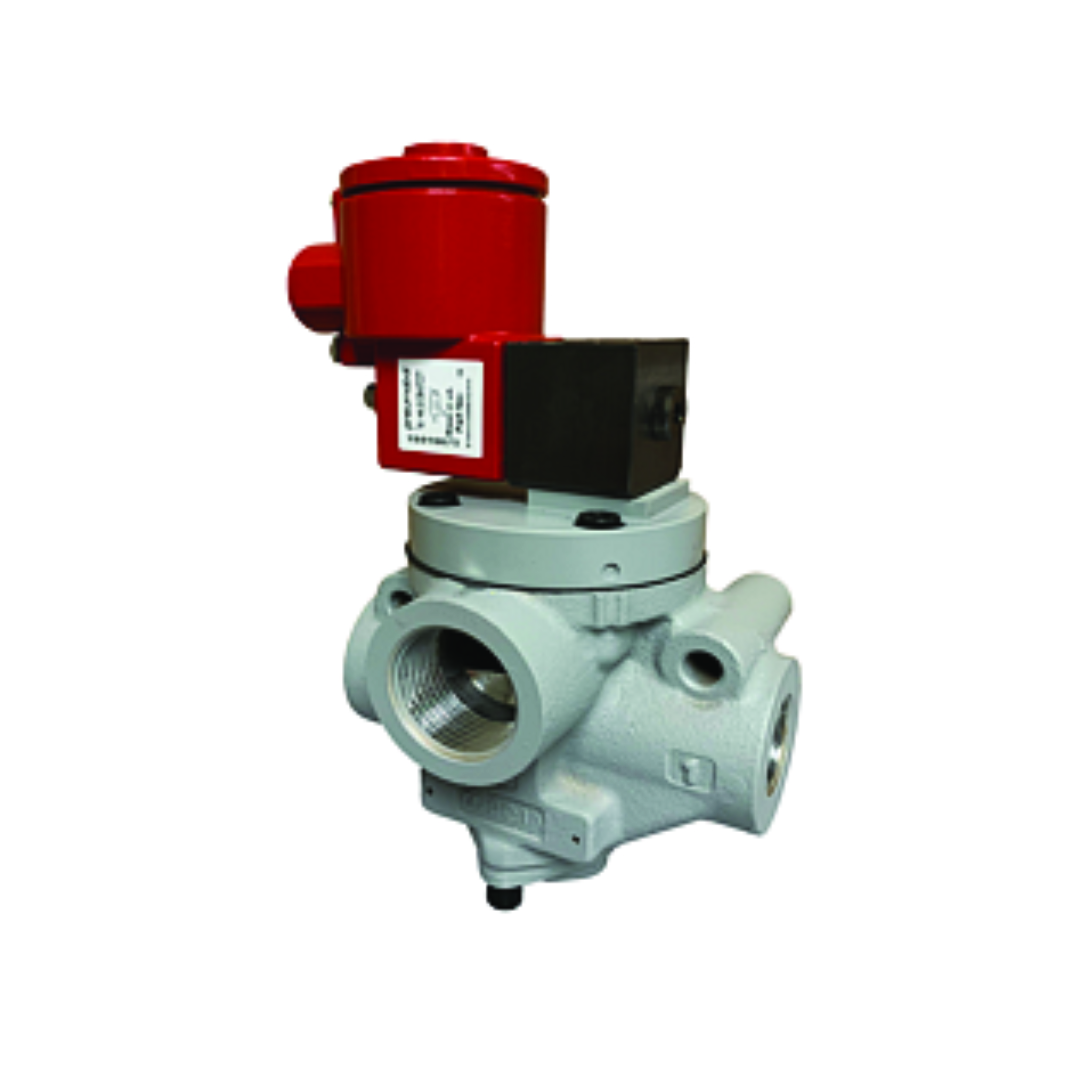

HELIS - 1/4" - 2", BSP/NPT, Helis, 3/2, High Flow Poppet Valve, Solenoid/Spring Return

HELIS – 1/4″ – 2″, BSP/NPT, Helis, 3/2, High Flow Poppet Valve, Solenoid/Spring Return

Compatible with all safe and hazardous area solenoids.

Material: Aluminium

3/2 Pilot Operated Normally Closed Solenoid Valve
Solenoid / Spring Return Function
Robust Internal Metal Poppet Design
Integrated with Interchangeable CNOMO Solenoid Interface Operators
Choices of Safe Area Terminal Box, Ex d Flameproof or Ex ia Intrinsically Safe Solenoid
Coils
Standard Body Material – Anodised Aluminium

Categories: Helis High Flow Poppet Solenoid Valve, Pneumatrol

Description

Features

Superior high flow up to Cv 70
Fast response times
Wide range of ports sizes from ¼” – 2”
Poppet design eliminates valve stiction problems
10 million cycles
Consistent response times over the life of the valve
Certified by TUV Rheinland, the valves are suitable for use in a safety instrumented system up to SIL 2 acc. IEC61508 and IEC61511
The following options are available on request: external pilot, normally open, 2/2 & 4/2
