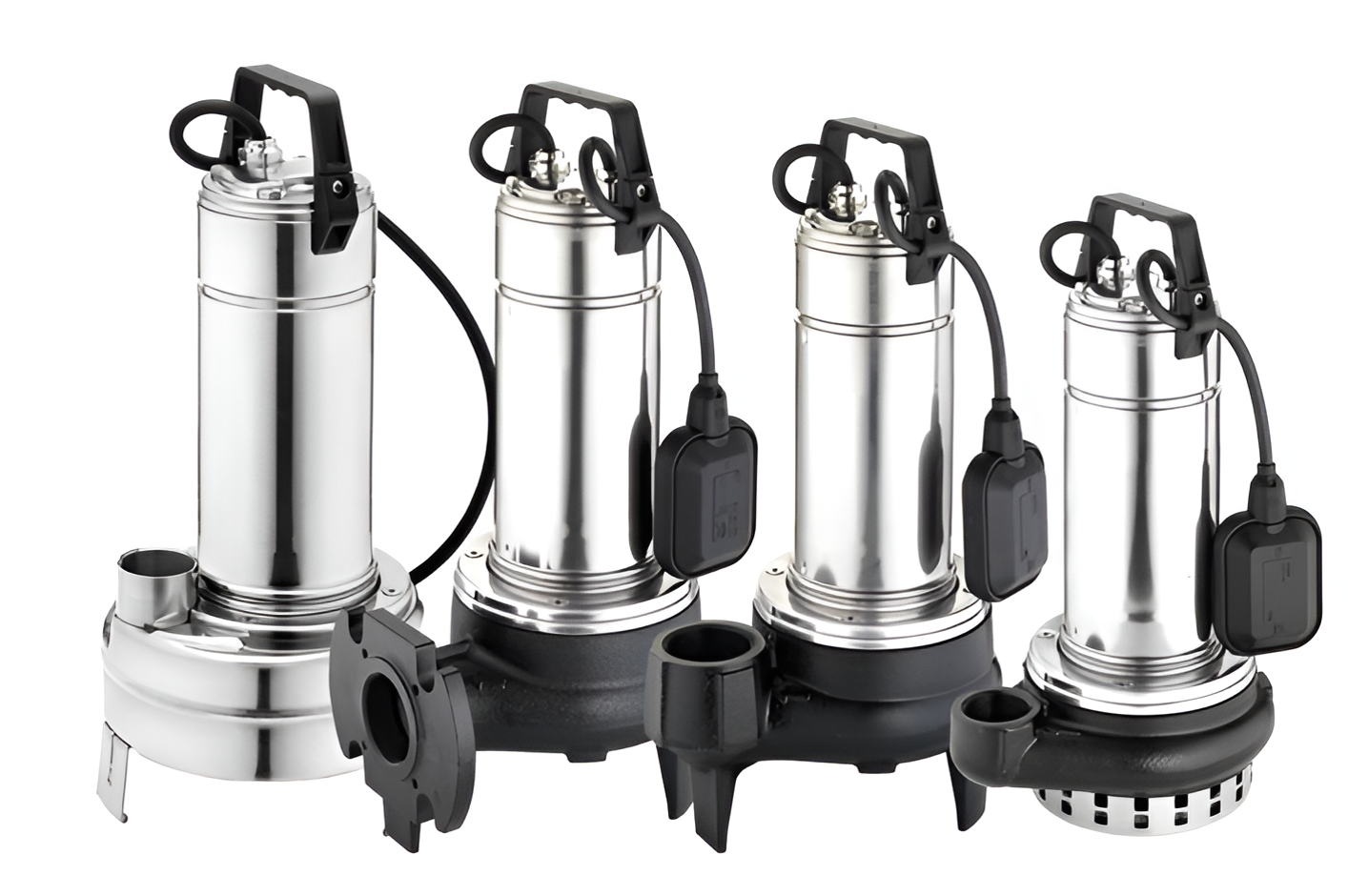

EGT & EGF Series

Submersible drainage pumps for dirty water


  • Single-impeller submersible pumps, with free-flow (vortex) impeller
  • EGT: with vertical threaded delivery port (G 2”)
  • EGF: with horizontal flanged and threaded delivery port (DN 50 – G 2”)
  • Double mechanical shaft seal with interposed oil chamber, to protect against dry-running


  • For domestic or industrial waste water, dirty water with solids up to 50 mm grain size, for liquids which are compatible with the pump materials
  • For draining rooms or emptying tanks
  • Extraction of water from ponds, streams or pits and for rainwater collection

Operating conditions

  • Liquid temperature: up to 35 °C
  • PH value: 6-11
  • Maximum immersion depth: 5 m
  • Minimum immersion depth: 275 mm
  • Continuous duty (with submerged motor)
