E23 - 1/4", BSP/NPT, Remote Mount, 3/2, Internal or External Pilot, Single or Dual Solenoid

E23 – 1/4″, BSP/NPT, Remote Mount, 3/2, Internal or External Pilot, Single or Dual Solenoid

Compatible with all safe and hazardous area solenoids.

Material options: Aluminium, Stainless Steel or Brass

3 port 2 position, pilot operated solenoid valve.

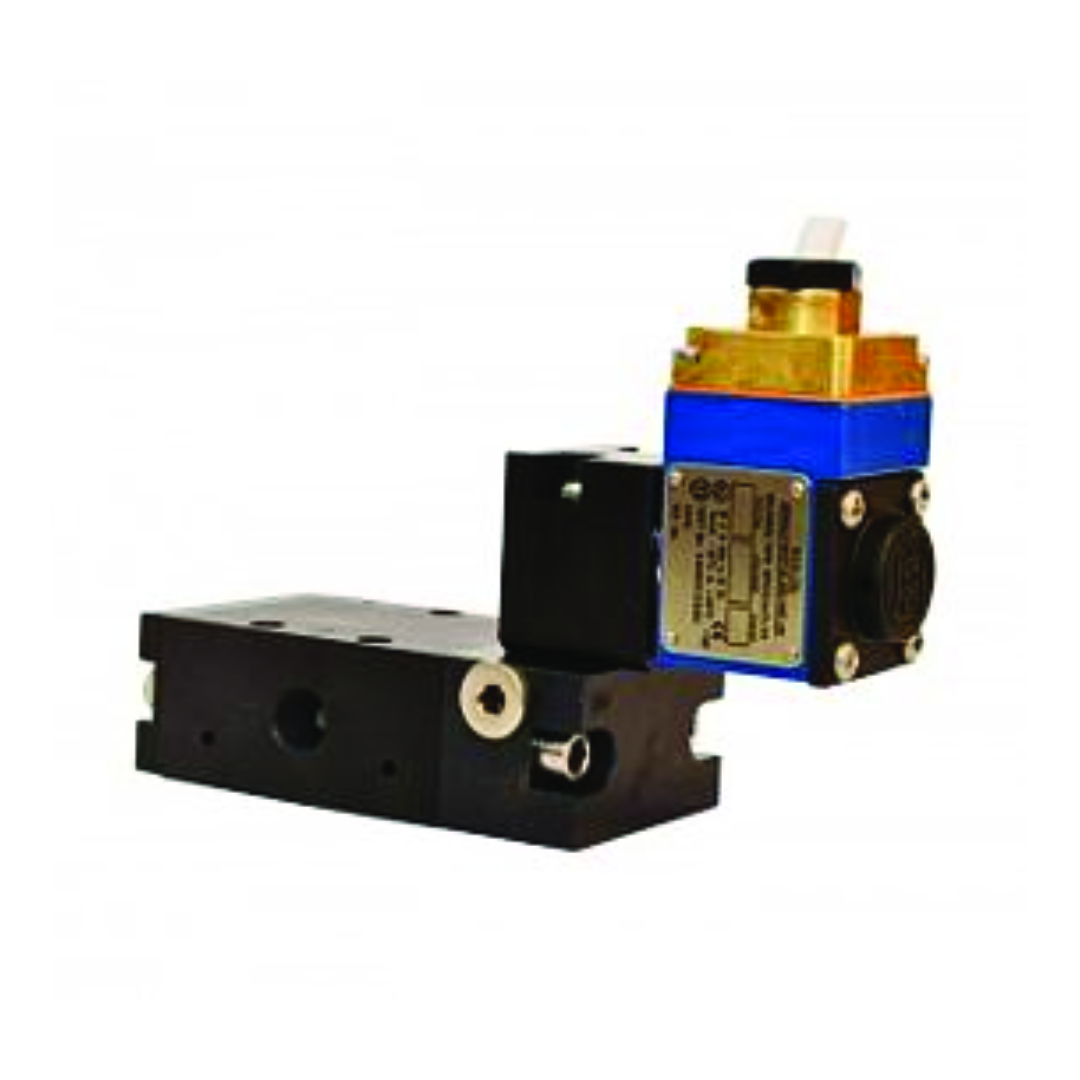

Valve is illustrated with an Exm coil.
Body material available in aluminium (standard), Stainless Steel, and brass.
Seal kit available – VSK200

Categories: Pneumatrol, Remote Mounted Valves

Description

Features

Internal or external pilot air connection
Single coil spring return function or double coil stay put function
Convenient fixing holes to enable bracket mounting
Pilot exhaust dust caps fitted as standard
Interchangeable CNOMO interface coils, including various hazardous area options
SIL 2 Capable (De-energise to trip @ HFT=0) SIL 3 Capable (De-energise to trip @ HFT=1)
