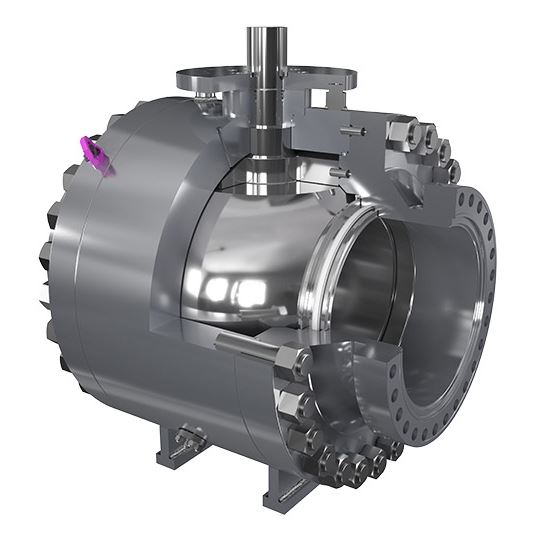

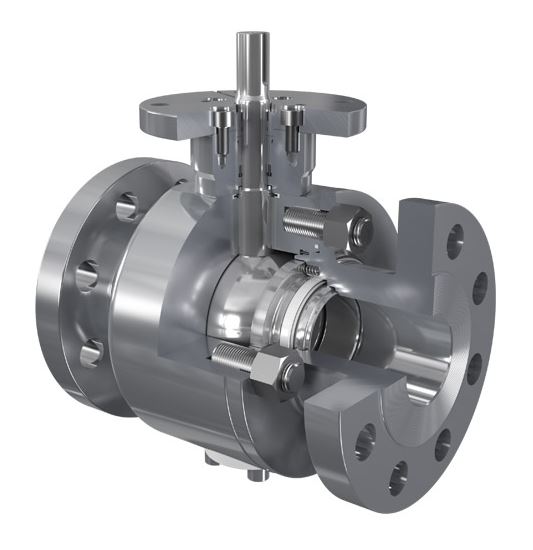

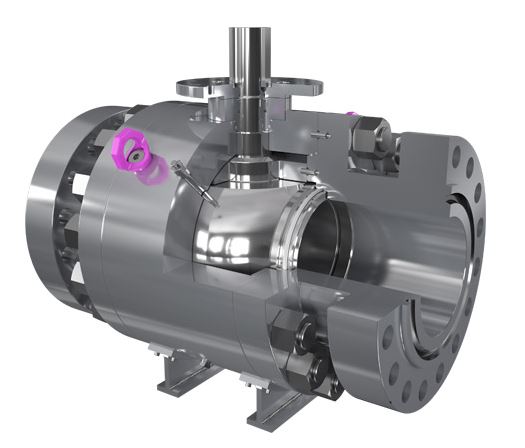

Trunnion Ball Valve

Model A11

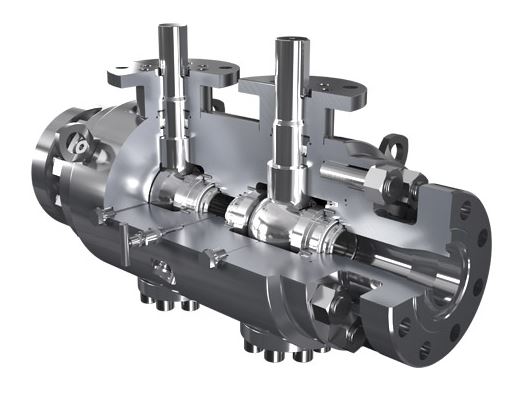

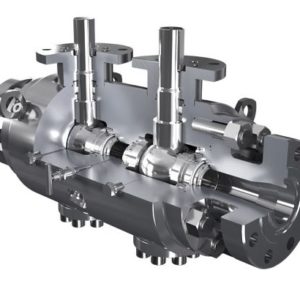

API 6D or API 6A Split Body Side Entry Ball Valve, Two or Three Pieces, Bolted Execution, Trunnion Mounted, Plate Supported, Spring Energized Floating Seats, Self Relieving or Double Piston Effect, Double Block and Bleed, Anti Blowout Stem, Antistatic Device.
Soft Seated or Metal-to-Metal Seated, Hardfaced with Tungsten Carbide Coating on Ball and Seats.
Manual Operated with Lever or Gear, as applicable – Pneumatic, Hydraulic or Electric Actuated.

– Size range from ½” to 42” for API 6D and from 1 13/16” to 13 5/8” for API 6A
– ANSI Class 150 lbs to 4500 lbs
– API6A Class 3000 PSI to 20000 PSI
– Flanged ends RF or RTJ, Norsok Standard L-005 Compact Flanges, Butt-Weld Ends Hub Ends for Clamped Connections at Clients Request. Other types of flanged, welded or clamp connections are available upon request.

Materials Available

CS, LTCS, SS, Duplex SS, Super Duplex SS, 6Mo, Inconel, Incoloy, Hastelloy, Monel, Titanium.
